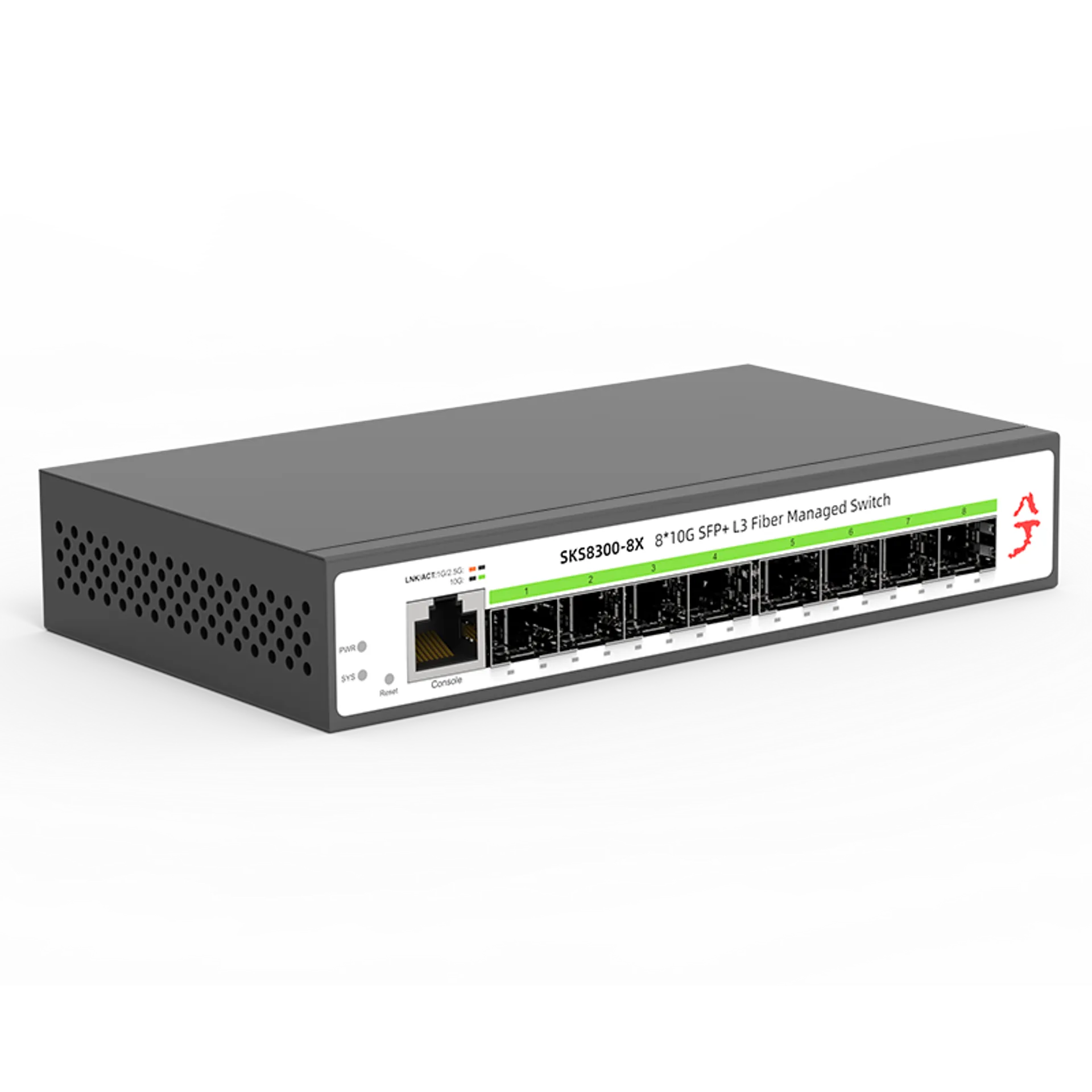

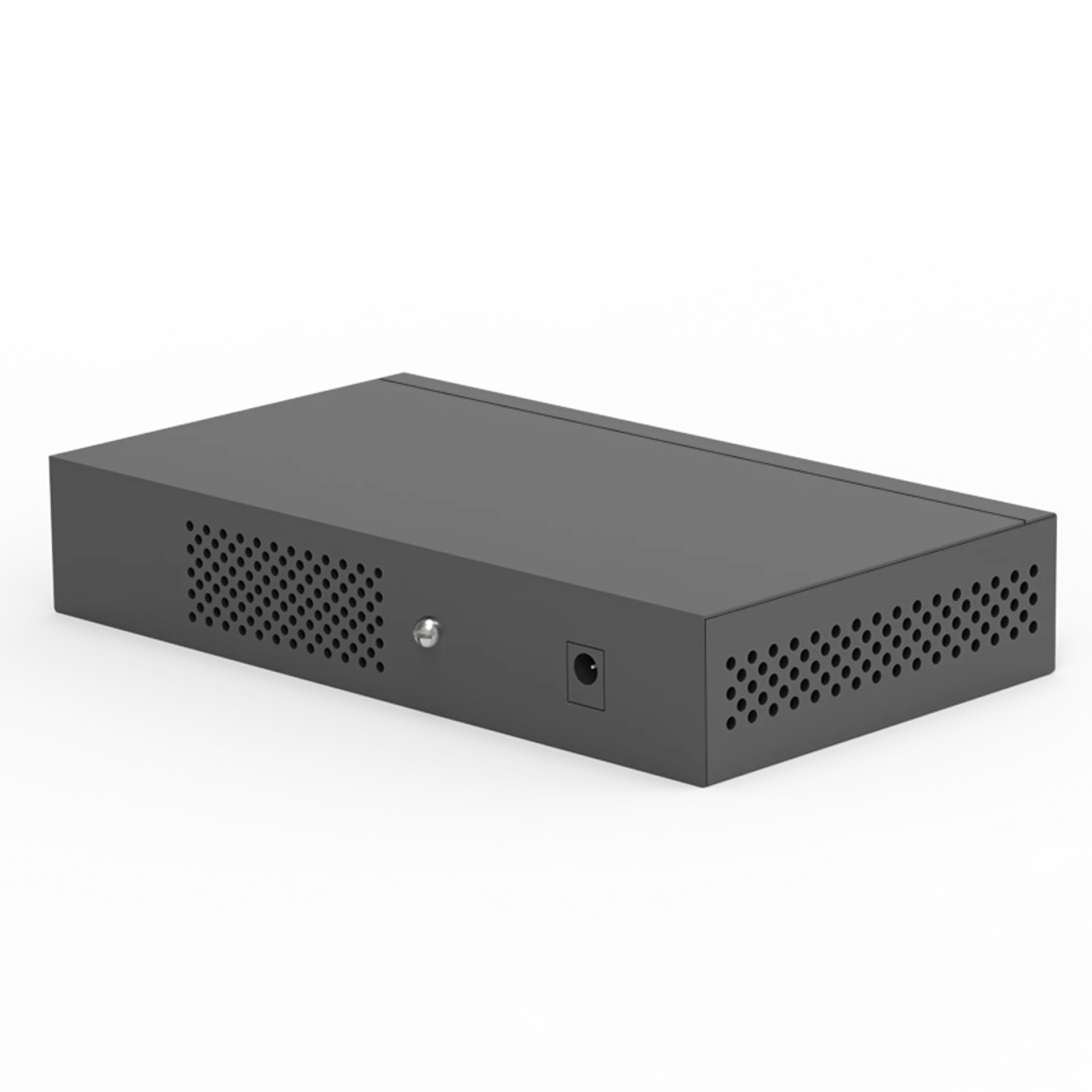

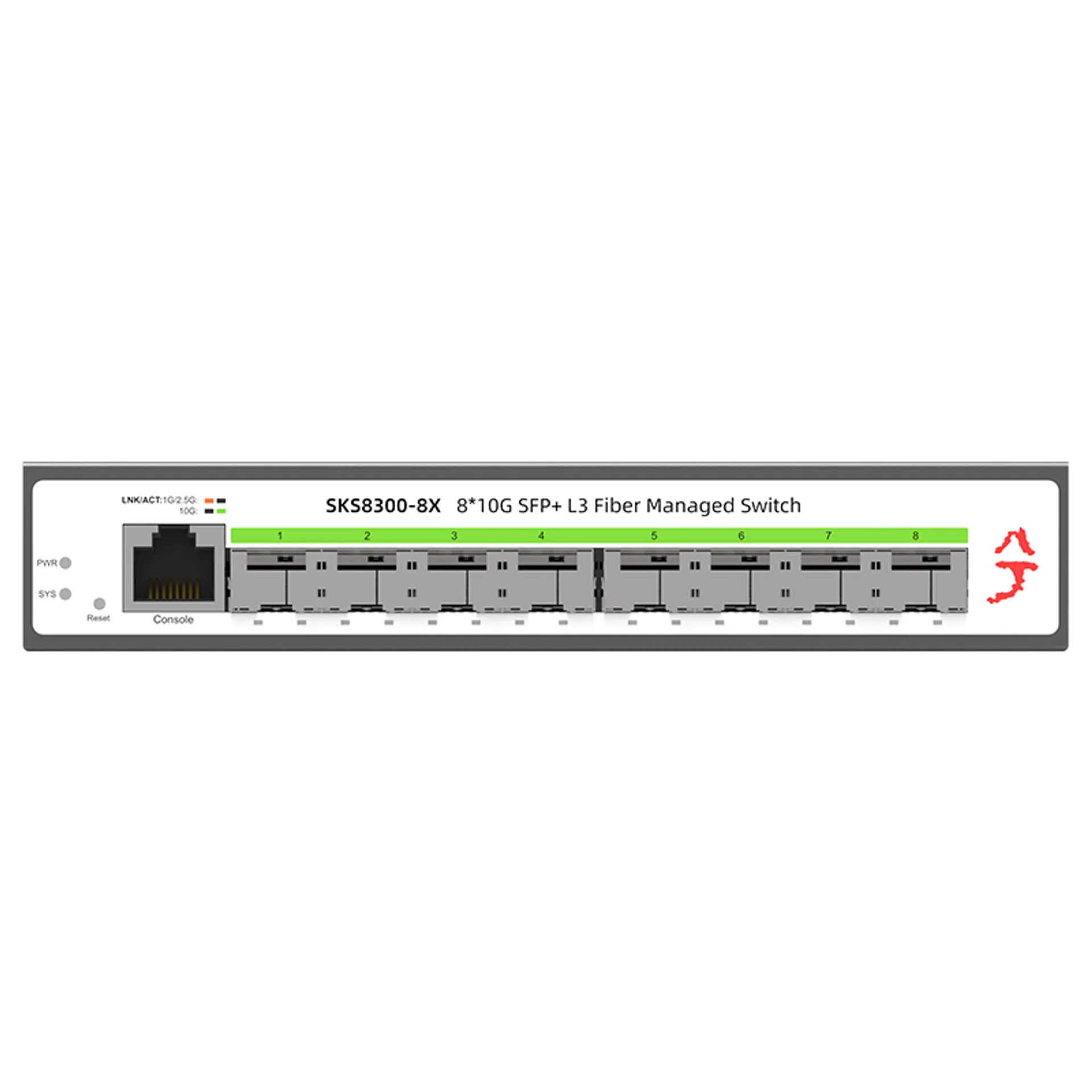

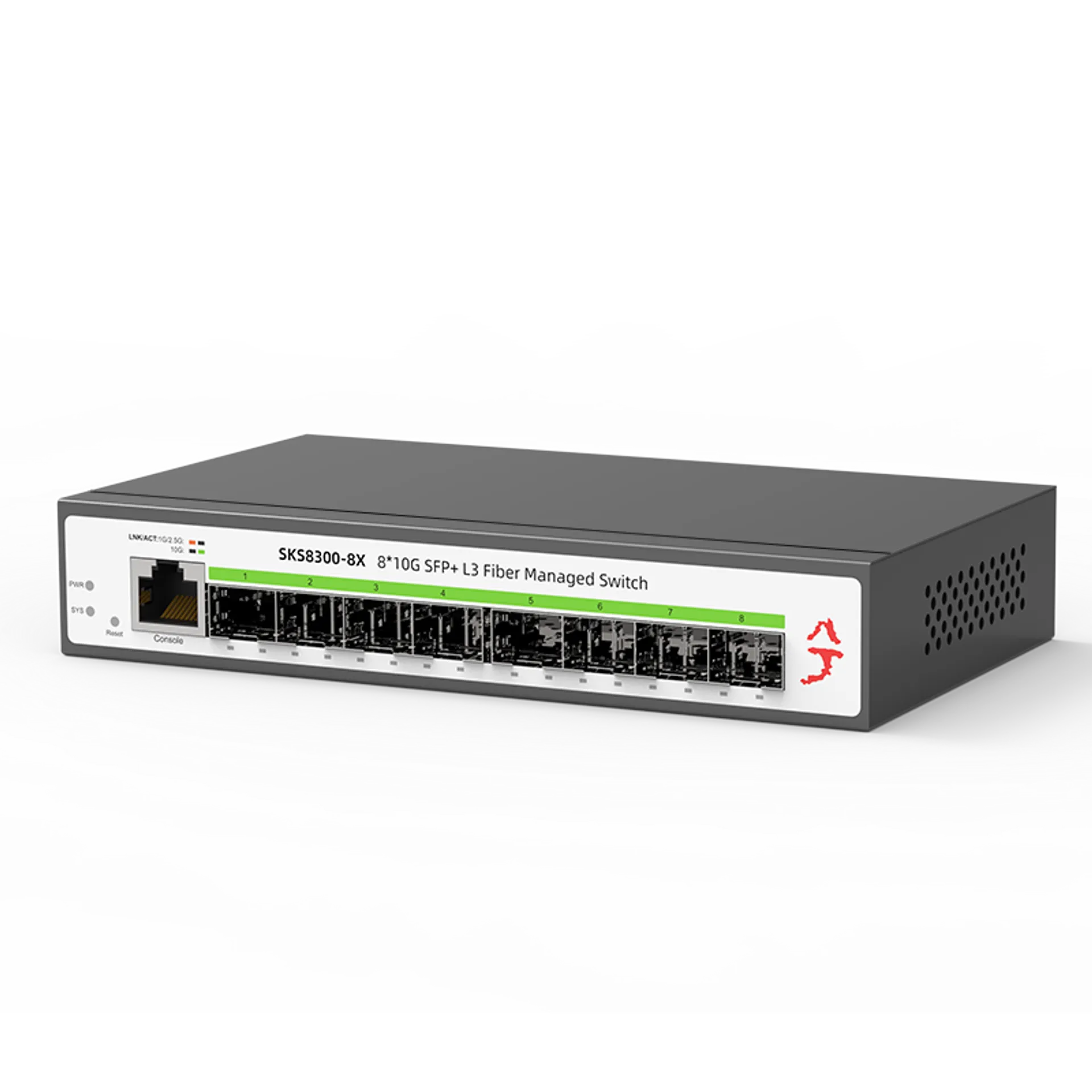

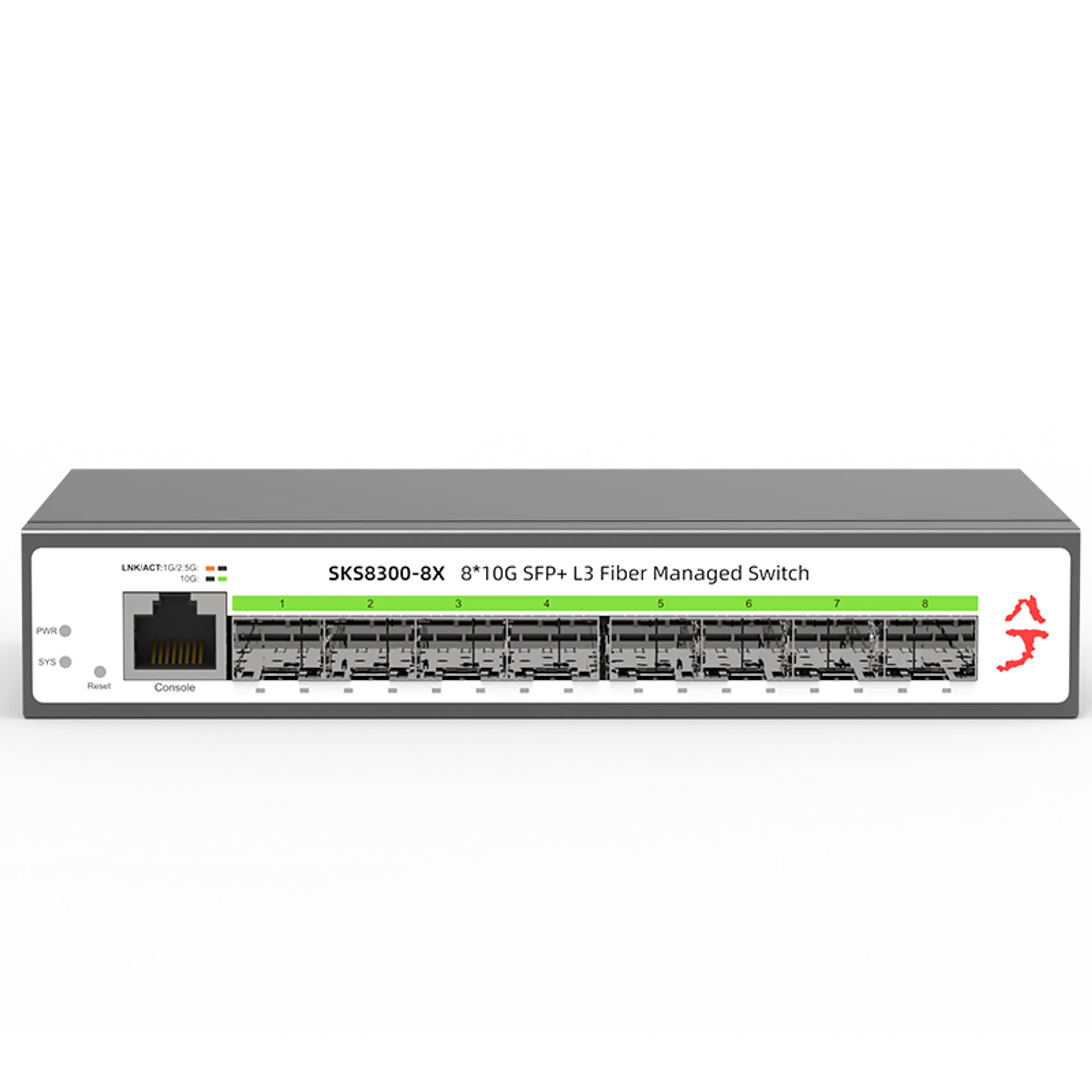

SKS8310-8X

Product Highlights

1. Enterprise-Grade 10G Layer 3 Performance This carrier-grade Layer 3 Ethernet switch is engineered for demanding enterprise networks and ISP environments. It delivers high-performance 10 Gigabit (10GbE) connectivity, providing an ideal, cost-effective solution for high-speed data transmission, core network aggregation, and low-latency server farm interconnects. 2. Advanced Network Redundancy & High Availability Ensure maximum network uptime with comprehensive redundancy protocols, including VRRP, ERPS (G.8032), MSTP, FlexLink, and MonitorLink. These features guarantee rapid self-healing and sub-50ms protection switching, providing rock-solid reliability even in the most complex and mission-critical network environments. 3. Robust Security Mechanisms & Threat Protection Equipped with a sophisticated security suite, including ACL filtering, IP+MAC+Port binding, DHCP Snooping, and ARP protection. Supporting 802.1X authentication and anti-DDoS mechanisms, this managed 10G switch effectively safeguards your infrastructure from unauthorized access and malicious network attacks. 4. Precision QoS & Intelligent Traffic Management Optimized for mission-critical applications with advanced Quality of Service (QoS) capabilities. Supports granular traffic classification, port/flow-based rate limiting, and professional priority scheduling (SP/WRR/SP+WRR). This ensures guaranteed bandwidth and minimal jitter for high-priority voice, video, and enterprise data streams. 5. Rich L3 Features & Flexible Dual-Stack Management Fully supports IPv4/IPv6 dual stack and advanced routing protocols like RIP, OSPF, and BGP. Featuring rich management options including CLI (Console/SSH), SNMP, sFlow, and an intuitive Web UI, this flexible 10G L3 switch is perfect for diverse deployments requiring port mirroring, QinQ, or Ethernet OAM (CFM/EFM) capabilities.
Specifications​
Ports Count Ports Count
8*10G SFP+
Downlink Speed Downlink Speed
10G
Uplink Speed Uplink Speed
10G
Switching Capacity Switching Capacity
160Gbps
PoE Ports PoE Ports
-
PoE Power PoE Power
-
Managed Layer Managed Layer
L3
Casing Material Casing Material
Iron
