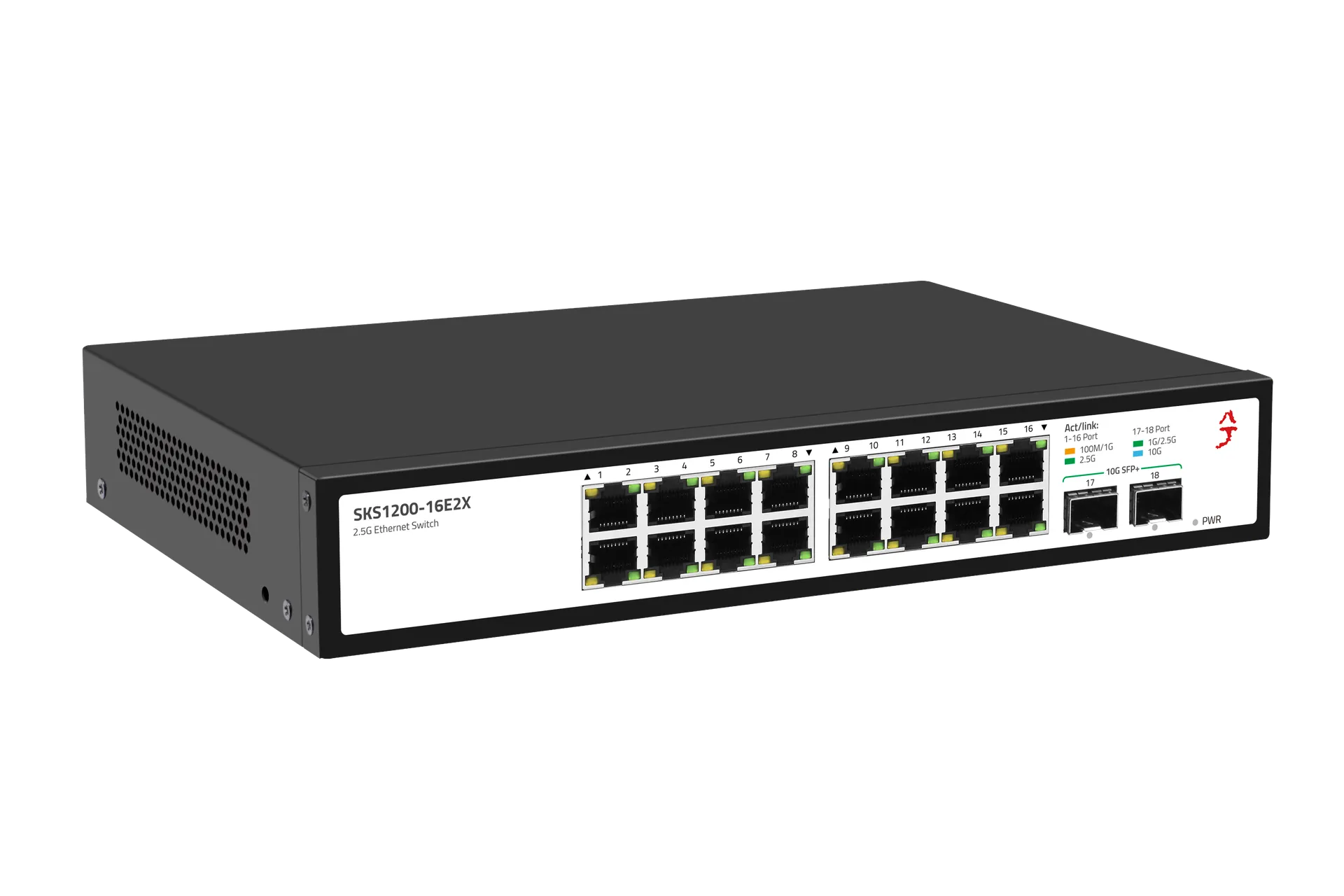

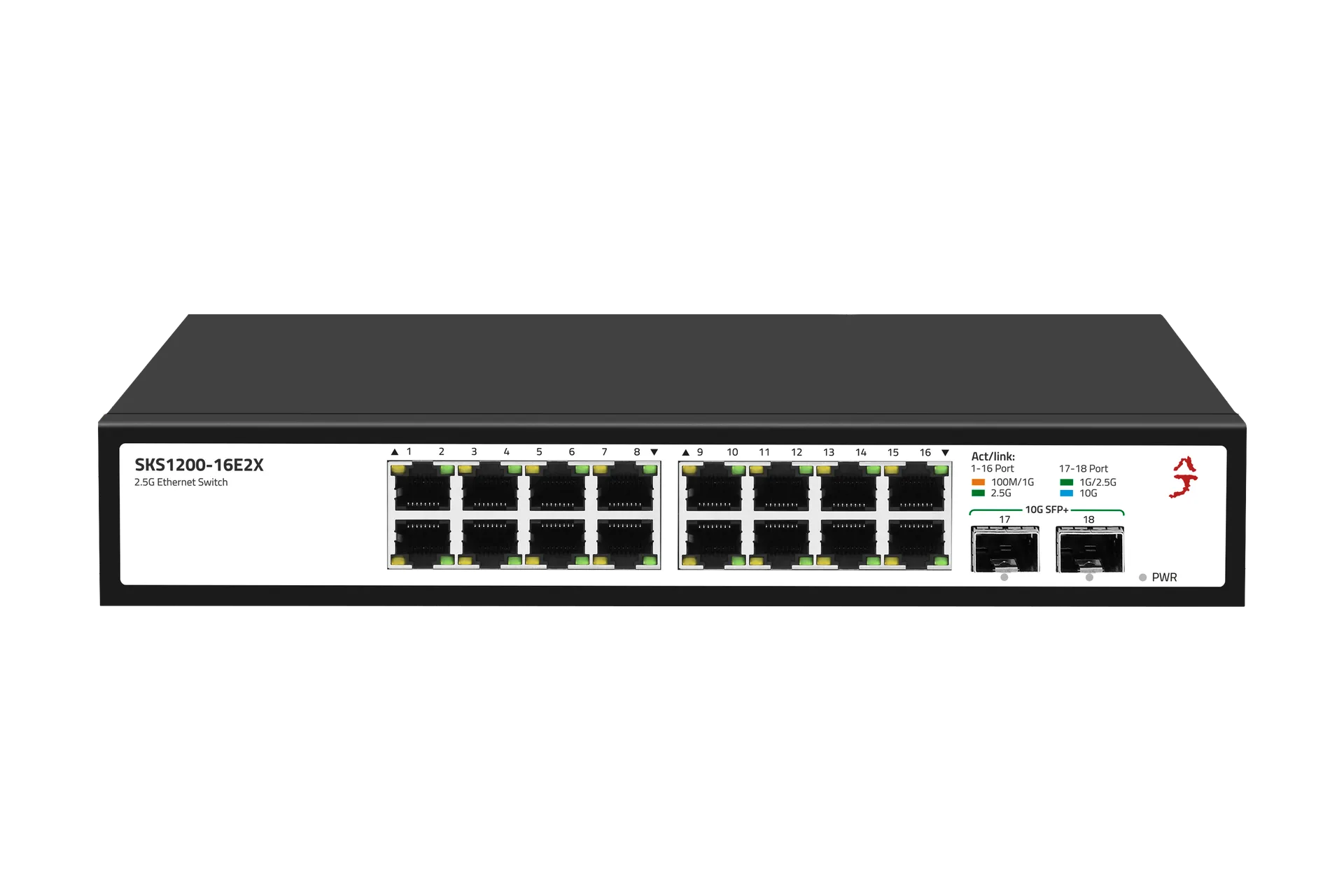

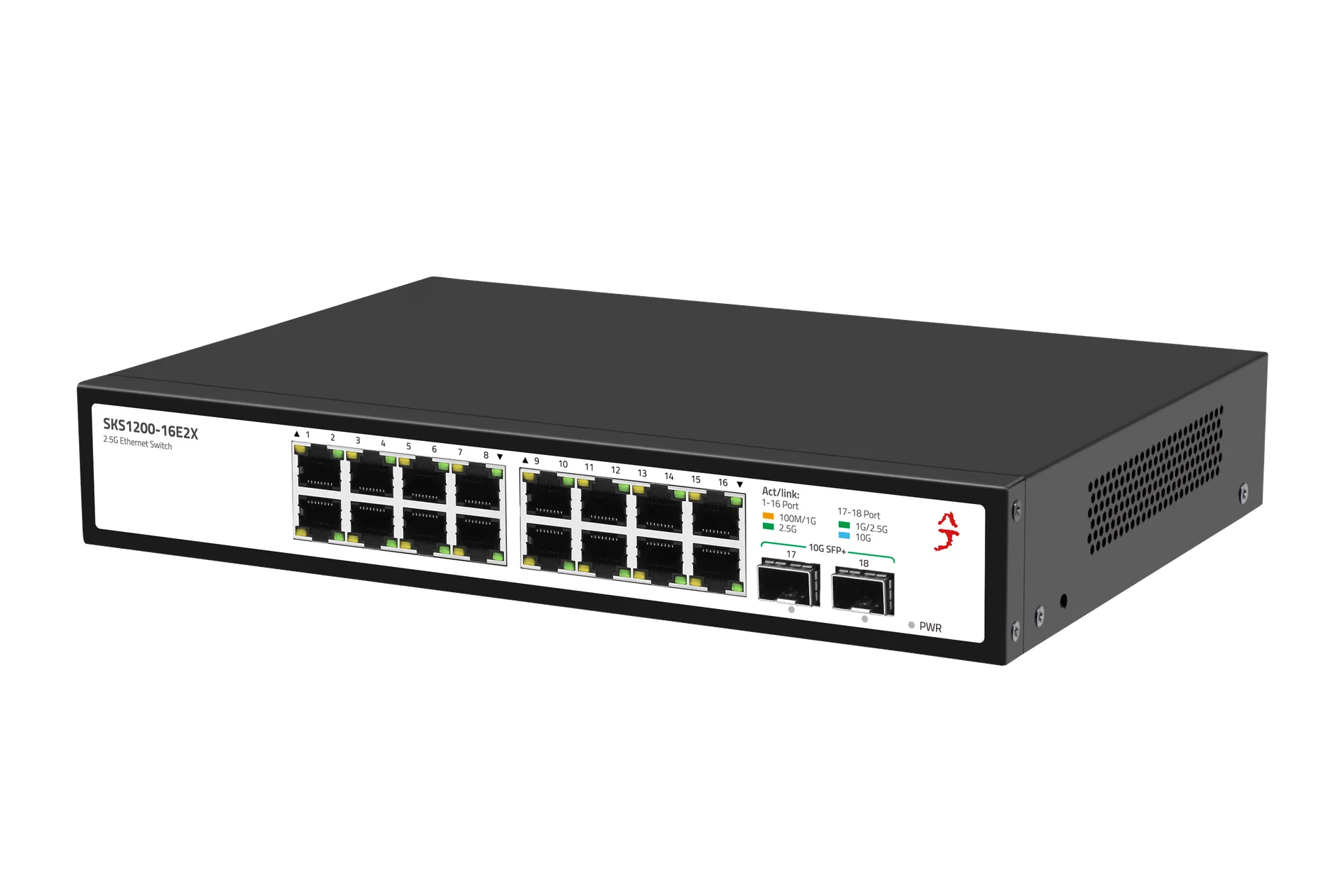

SKS1200-16E2X

Product Highlights

1. Enterprise-Grade 16-Port 2.5G & Dual 10G SFP+ Uplinks The SKS1200-16E2X features 16× 2.5G RJ45 ports and 2× 10G SFP+ uplinks, providing a high-density solution for multi-gigabit networks. With a massive 120Gbps switching capacity and 89.28Mpps forwarding rate, it ensures non-blocking data transmission for high-bandwidth tasks like ultra-fast NAS access, server clusters, and 4K/8K video production. 2. Advanced Multi-Gigabit Auto-Negotiation Designed for maximum versatility, the 16 Ethernet ports support 100M/1000M/2500M auto-adaptive speeds. This allows seamless integration with legacy hardware while fully unlocking the potential of WiFi 7/6E Access Points, 2.5G gaming PCs, and high-performance workstations, breaking the 1G bottleneck in your local network. 3. Silent Fanless Design for Quiet Environments Despite its high port density, this switch features a professional fanless, noise-free structure. The efficient heat dissipation design ensures stable operation even under full load, making it the perfect choice for noise-sensitive environments such as home offices, boutique hotels, libraries, and school classrooms. 4. 10G Fiber Uplink for Future-Proof Expansion The dual 10G SFP+ slots support 1G/2.5G/10G rates and are compatible with various SFP+ modules, DACs, and AOC cables. These ports provide a high-speed fiber backbone to your core router or high-capacity servers, ensuring your infrastructure is ready for the next generation of multi-gigabit internet speeds. 5. Robust Reliability & Plug-and-Play Simplicity Built for mission-critical applications, the SKS1200-16E2X requires no configuration. With true plug-and-play simplicity, Auto MDI/MDIX, and high-quality network chipsets, it delivers a stable and efficient LAN environment for SME business networks, smart home integration, and real-time surveillance monitoring.
Specifications​
Ports Count Ports Count
16*2.5G RJ45 2*10G SFP+
Downlink Speed Downlink Speed
10G
Uplink Speed Uplink Speed
10G
Switching Capacity Switching Capacity
120Gbps
PoE Ports PoE Ports
-
PoE Power PoE Power
-
Managed Layer Managed Layer
Unmanaged
Casing Material Casing Material
Iron

User Manual

Installation & configuration guide for XikeStor network hardware

Product Specifications

Full hardware and performance data.
